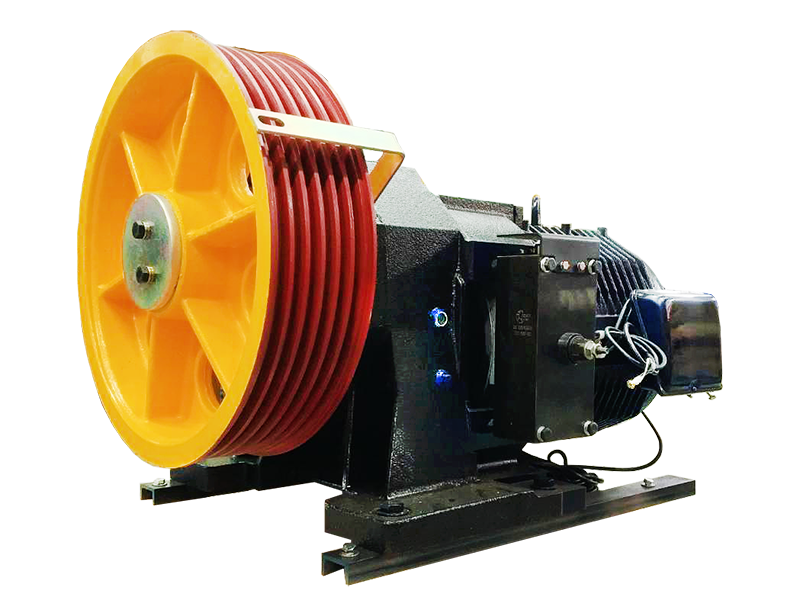

Product Details
Main Shaft Load：5000 kg
Weight Approx.：455 kg
Motor：
- Rated Voltage：175V~200V/350V~380V
- INS. Class：F class
Brake：
- Voltage：DC 100V
Encoder：
- Pulse generator 2048 C/T
- Voltage：DC 5V
| Duty Load (kg) | Speed (m/min) | Roping | Ratio | MAIN SHEAVE | Motor | ||||
|---|---|---|---|---|---|---|---|---|---|
| Dia. (PCD) (mm) | Rope (mm) | Pitch (mm) | Power (kw) | Poles | Frequency(Hz) | ||||
| 900 | 45 | 1:1 | 1 / 3.4 | 500 | Ø12 | 19 | 4.3 | 32 | 26.1 |
| 60 | 5.6 | 34.67 | |||||||
| 90 | 8.5 | 52.47 | |||||||
| 105 | 10 | 60.8 | |||||||
| 1000 | 45 | 4.7 | 26.1 | ||||||
| 60 | 6.2 | 34.67 | |||||||
| 90 | 9.4 | 52.47 | |||||||
| 105 | 11 | 60.8 | |||||||
Production Assembly
Attachment
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
| 1 | 主機載重表 | 2020-08-04 | 主機載重表 |
