Product Details
Main Shaft Load：1500 kg
Weight Approx.：100 kg
Motor：
- Rated Voltage：220V / 380V
- INS. Class：F class

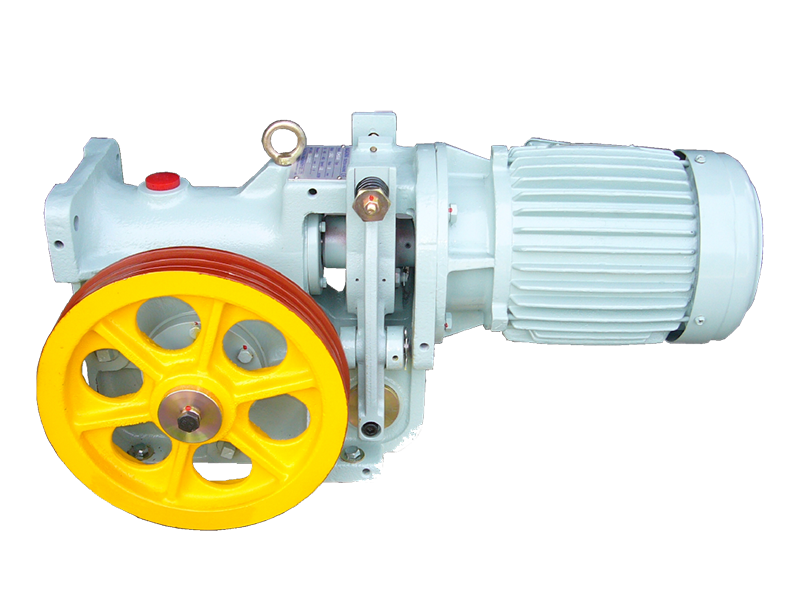

Left-hand or right-hand are both available. (Left-hand shown)
Horizontal type or vertical type are both applicable. (Horizontal type shown)
Brake：
- Voltage：DC 110V
Encoder：
- ψ8 Hollow Type 600 P/R
- Voltage：DC 12V
| Duty Load (kg) | Speed (m/min) | Roping | Ratio | MAIN SHEAVE | Motor | ||||
|---|---|---|---|---|---|---|---|---|---|
| Dia.(PCD) (mm) | Rope (mm) | Pitch (mm) | Power (kw) | Poles | Frequency (Hz) | ||||
| 210 | 20 | 1:1 | 1 / 62 | ψ280 | ψ8 X 3 | 14 | 1.5 | 4 | 50 |
| 210 | 25 | 1:1 | 1 / 50 | ψ280 | ψ8 X 3 | 14 | 1.5 | 4 | 50 |
| 210 | 30 | 1:1 | 1 / 50 | ψ320 | ψ8 X 3 | 14 | 1.5 | 4 | 50 |
Production Assembly
Attachment
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
| 1 | 主機載重表 | 2020-08-04 | 主機載重表 |
