Traction Machine PF-1800-A

Traction Machine PF-1800-A

Model No.： PF-1800-A

Detail

Product Details

Main Shaft Load：1800 kg
Weight Approx.：135 kg
Motor：
  • Rated Voltage：208V / 360V / 415V
  • INS. Class：F class

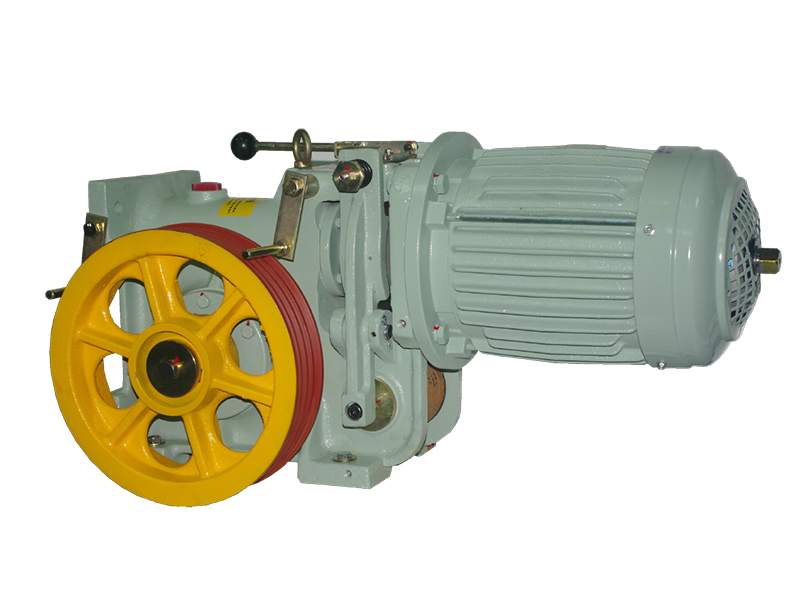

Left-hand or right-hand are both available.  (Left-hand shown)
Horizontal type or vertical type are both applicable.  (Horizontal type shown)
Brake：
  • Voltage：DC 110V
Encoder：
  • ψ30 Hollow Type 1024 P/R
  • Voltage：DC 12V



MAIN SHEAVE A B C
ψ280 X 4V X ψ8 142 15 10
ψ320 X 3V X ψ10 140 32 27
ψ320 X 4V X ψ8 142 32 27



Traction Machine PF-1800-A





Duty Load
(kg)		 Speed
(m/min)		 Roping Ratio MAIN SHEAVE Motor
Dia.(PCD)
(mm)		 Rope
(mm)		 Pitch
(mm)		 Power
(kw)		 Poles Frequency
(Hz)
320 30 1:1 1 / 43 ψ280 ψ8 X 4 14 2.2 4 50
ψ320 ψ8 X 4 / ψ10 X 3 14 / 16
320 30 1:1 2 / 49 ψ280 ψ8 X 4 14 1.5 6 40
ψ320 ψ8 X 4 / ψ10 X 3 14 / 16 2.2 6 42





Production Assembly

Traction Machine PF-1800-A
Traction Machine PF-1800-A
Traction Machine PF-1800-A
Traction Machine PF-1800-A
Traction Machine PF-1800-A
Traction Machine PF-1800-A
Traction Machine PF-1800-A
Traction Machine PF-1800-A





Attachment

# Name Upload Date Description Download
1 主機載重表 2020-08-04   主機載重表
