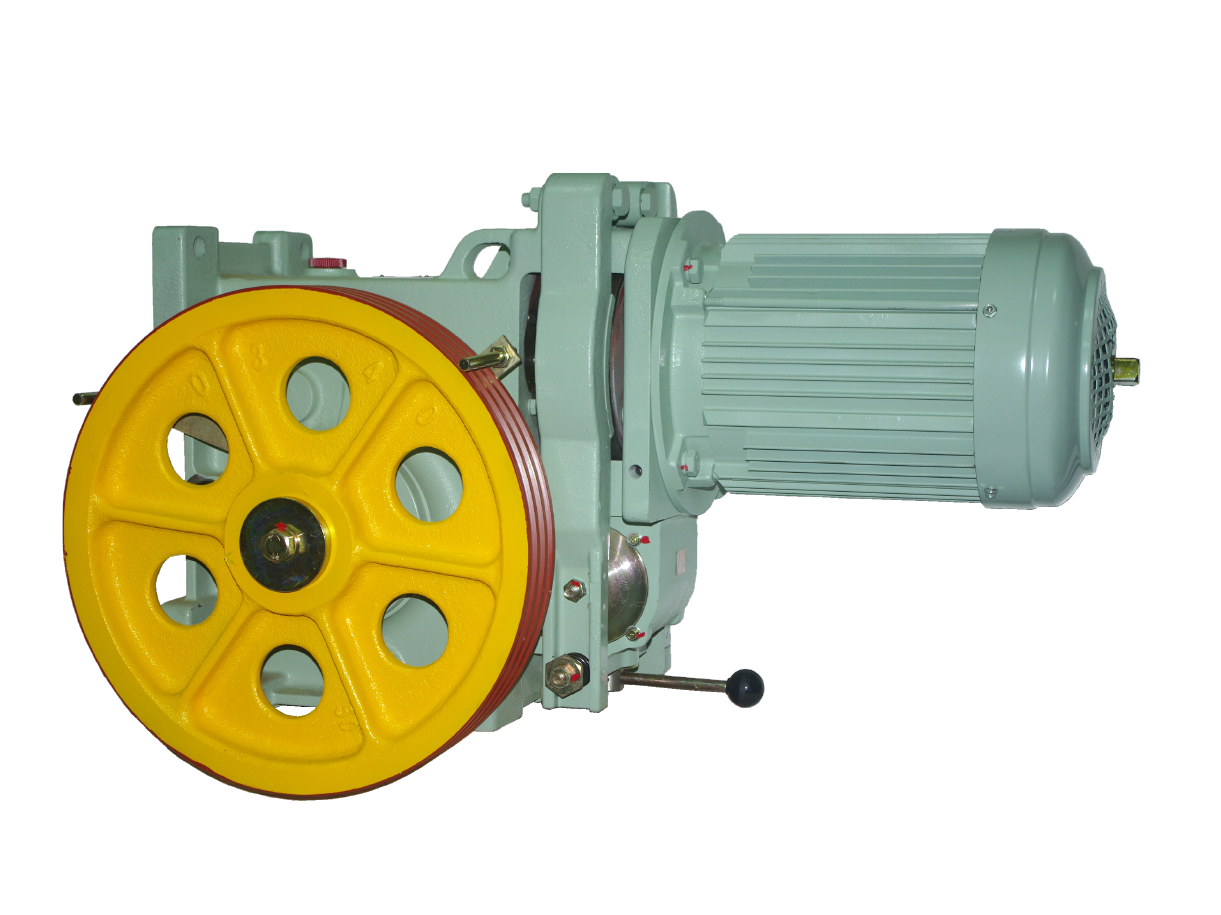

Product Details
Main Shaft Load：2600 kg
Weight Approx.：230 kg
Motor：
- Rated Voltage：208V / 360V / 415V
- INS. Class：F class
Left-hand or right-hand are both available. (Left-hand shown)
Horizontal type or vertical type are both applicable. (Horizontal type shown)
Brake：
- Voltage：DC 110V
Encoder：
- ψ30 Hollow Type 1024 P/R
- Voltage：DC 12V
| MAIN SHEAVE | A | B | C | D |
|---|---|---|---|---|
| ψ320 X 4V X ψ8 | 166 | 7 | 7 | 66 |
| ψ320 X 5V X ψ8 | 173 | 7 | 7 | 73 |
| ψ400 X 3V X ψ10 | 165 | 47 | 47 | 65 |
| ψ400 X 4V X ψ10 | 174 | 52 | 52 | 74 |
| Duty Load (kg) | Speed (m/min) | Roping | Ratio | MAIN SHEAVE | Motor | ||||
|---|---|---|---|---|---|---|---|---|---|
| Dia.(PCD) (mm) | Rope (mm) | Pitch (mm) | Power (kw) | Poles | Frequency (Hz) | ||||
| 300 | 90 | 1:1 | 2 / 41 | ψ400 | ψ10 X (3,4) | 16 | 3.7 | 4 | 50 |
| 400 | 60 | 1:1 | 2 / 41 | ψ400 | ψ10 X (3,4) | 16 | 3.7 | 4 | 35 |
| 450 | 30 | 1:1 | 1 / 41 | ψ320 | ψ8 X (4,5) | 14 | 3.7 | 4 | 50 |
| ψ400 | ψ10 X (3,4) | 16 | 3.7 | 4 | 35 | ||||
| 450 | 45 | 1:1 | 2 / 41 | ψ320 | ψ8 X (4,5) | 14 | 3.7 | 4 | 35 |
| ψ400 | ψ10 X (3,4) | 16 | 3.7 | 6 | 40 | ||||
| 1 / 41 | ψ400 | ψ10 X (3,4) | 16 | 3.7 | 4 | 50 | |||
| 450 | 45 | 2:1 | 2 / 41 | ψ400 | ψ10 X (3,4) | 16 | 3.7 | 4 | 50 |
| 450 | 30 | 2:1 | 2 / 41 | ψ400 | ψ10 X (3,4) | 16 | 3.7 | 4 | 35 |
