Traction Machine P8-3000-D

Traction Machine P8-3000-D

Model No.： P8-3000-D

Detail

Product Details

Main Shaft Load：3000 kg
Weight Approx.：270 kg
Motor：
  • Rated Voltage：208V / 360V / 415V
  • INS. Class：F

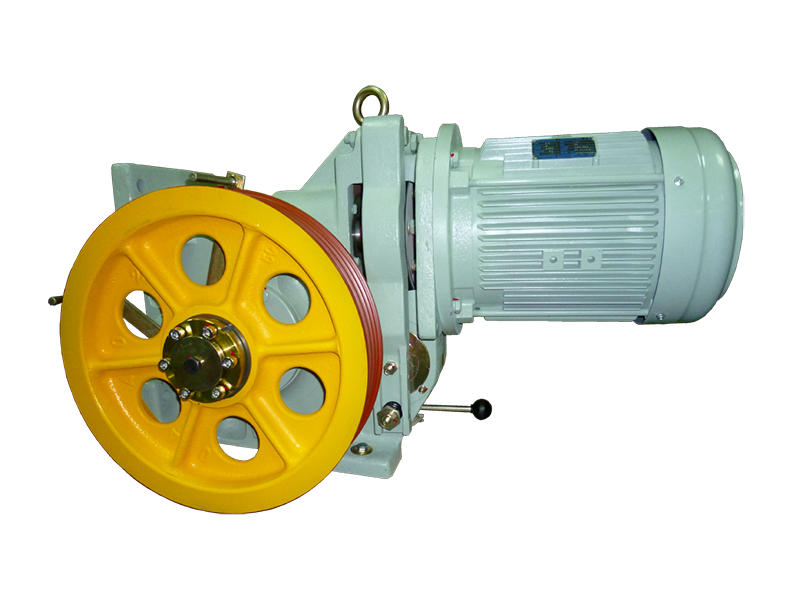

Left-hand or right-hand are both available.  (Left-hand shown)
Horizontal type or vertical type are both applicable.  (Horizontal type shown)
Brake：
  • Voltage：DC 110V
Encoder：
  • ψ30 Hollow Type 1024 P/R
  • Voltage：DC 12V



MAIN SHEAVE A B C D
ψ400 X 4V X ψ10 183 32 47 83
ψ520 X 3V X ψ10 195 87 102 95
ψ520 X 3V X ψ12 195 87 102 95
ψ520 X 4V X ψ10 195 87 102 95
ψ520 X 4V X ψ12 200 87 102 100



Traction Machine P8-3000-D





Duty Load
(kg)		 Speed
(m/min)		 Roping Ratio MAIN SHEAVE Motor
Dia.(PCD)
(mm)		 Rope
(mm)		 Pitch
(mm)		 Power
(kw)		 Poles Frequency
(Hz)
400 90 1:1 2 / 41 ψ520 ψ10 X 3~4/ψ12 X3~4 16 / 19 5.5 4 35
560 60 1:1 1 / 41 ψ520 ψ10 X 3~4/ψ12 X3~4 16 / 19 5.5 4 50
560 45 1:1 1 / 41 ψ520 ψ10 X 3~4/ψ12 X3~4 16 / 19 5.5 4 35
560 60 2:1 2 / 41 ψ520 ψ10 X 3~4/ψ12 X3~4 16 / 19 5.5 4 50
560 45 2:1 2 / 41 ψ400 ψ10 X 4 16 5.5 4 50
800 30 2:1 2 / 41 ψ400 ψ10 X 4 16 5.5 4 35
1 / 41 ψ520 ψ10 X 3~4/ψ12 X3~4 16 / 19 5.5 4 50
