Traction Machine P15-6000-A

Traction Machine P15-6000-A

Model No.： P15-6000-A

Detail

Product Details

Main Shaft Load：6000 kg
Weight Approx.：540 kg
Motor：
  • Rated Voltage：208V / 360V / 415V
  • INS. Class：F class

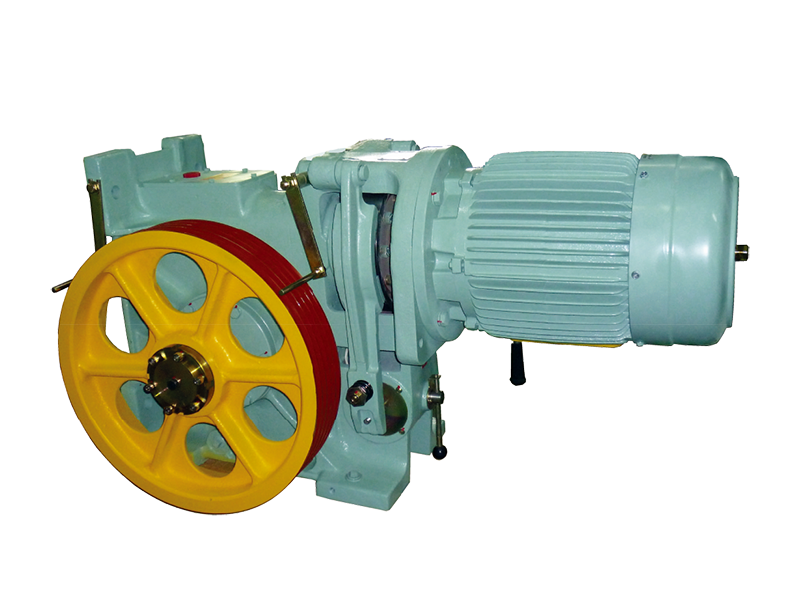

Left-hand or right-hand are both available.  (Left-hand shown)
Horizontal type or vertical type are both applicable.  (Horizontal type shown)
Brake：
  • Voltage：DC 110V
Encoder：
  • ψ30 Hollow Type 1024 P/R
  • Voltage：DC 12V



MAIN SHEAVE A B
ψ520 X 4V X ψ10 235 95
ψ520 X 4V X ψ12 235 95
ψ520 X 5V X ψ10 240 100
ψ520 X 5V X ψ12 240 100



Traction Machine P15-6000-A





Duty Load
(kg)		 Speed
(m/min)		 Roping Ratio MAIN SHEAVE Motor
Dia.(PCD)
(mm)		 Rope
(mm)		 Pitch
(mm)		 Power
(kw)		 Poles Frequency
(Hz)
800 120 1:1 2 / 41 ψ520 ψ10 X 4~5/ψ12 X 4~5 16 / 19 15 4 50
900 90 1:1 2 / 41 ψ520 ψ10 X 4~5/ψ12 X 4~5 16 / 19 11 4 38
1150 60 1:1 1 / 41 ψ520 ψ10 X 4~5/ψ12 X 4~5 16 / 19 11 4 50
1500 60 2:1 2 / 41 ψ520 ψ10 X 4~5/ψ12 X 4~5 16 / 19 15 4 50
2000 45 2:1 2 / 41 ψ520 ψ10 X 4~5/ψ12 X 4~5 16 / 19 15 4 38





Production Assembly

Traction Machine P15-6000-A
Traction Machine P15-6000-A
Traction Machine P15-6000-A
Traction Machine P15-6000-A
Traction Machine P15-6000-A
Traction Machine P15-6000-A
Traction Machine P15-6000-A
Traction Machine P15-6000-A





Attachment

# Name Upload Date Description Download
1 主機載重表 2020-08-05   主機載重表
