Product Details
Main Shaft Load：7000 kg
Weight Approx.：970 kg
Motor：
- Rated Voltage：208V / 360V / 415V
- INS. Class)：F class

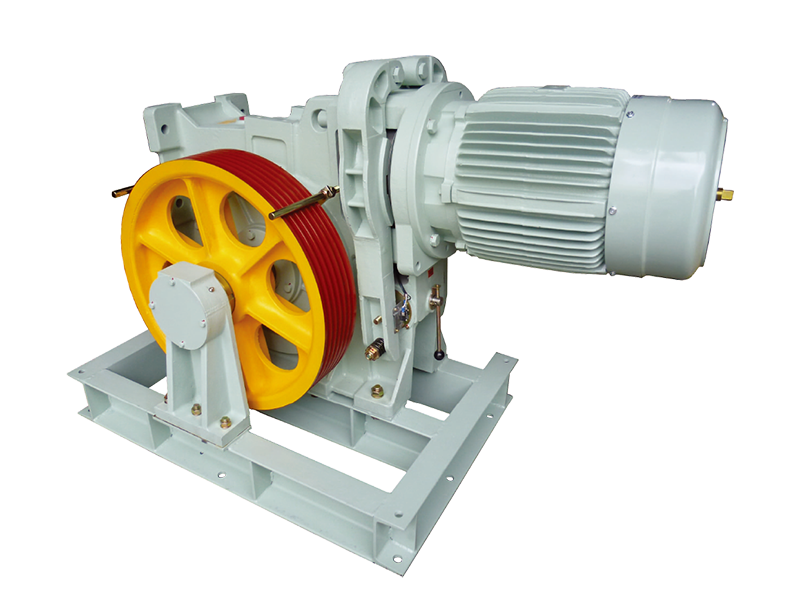

Left-hand or right-hand are both available. (Left-hand shown)
Horizontal type or vertical type are both applicable. (Horizontal type shown)
Brake：
- Voltage：DC 110V
Encoder：
- ψ30 Hollow Type 1024 P/R
- Voltage：DC 12V
| Duty Load (kg) | Speed (m/min) | Roping | Ratio | MAIN SHEAVE | Motor | ||||
|---|---|---|---|---|---|---|---|---|---|
| Dia.(PCD) (mm) | Rope (mm) | Pitch (mm) | Power (kw) | Poles | Frequency (Hz) | ||||
| 1150 | 120 | 1:1 | 2 / 51 | ψ640 | ψ12 X 5~7/ψ16 X 4~6 | 19 / 24 | 22 | 4 | 50 |
| 1500 | 90 | 1:1 | 2 / 51 | ψ640 | ψ12 X 5~7/ψ16 X 4~6 | 19 / 24 | 18 | 4 | 40 |
| 1850 | 60 | 1:1 | 2 / 51 | ψ640 | ψ12 X 5~7/ψ16 X 4~6 | 19 / 24 | 18 | 4 | 50 |
| 2000 | 60 | 2:1 | 2 / 51 | ψ640 | ψ12 X 5~7/ψ16 X 4~6 | 19 / 24 | 22 | 4 | 50 |
| 2500 | 45 | 2:1 | 2 / 51 | ψ640 | ψ12 X 5~7/ψ16 X 4~6 | 19 / 24 | 18 | 4 | 40 |
| 3000 | 30 | 2:1 | 2 / 51 | ψ640 | ψ12 X 5~7/ψ16 X 4~6 | 19 / 24 | 18 | 4 | 50 |
Production Assembly
Attachment
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
| 1 | 主機載重表 | 2020-08-05 | 主機載重表 |
