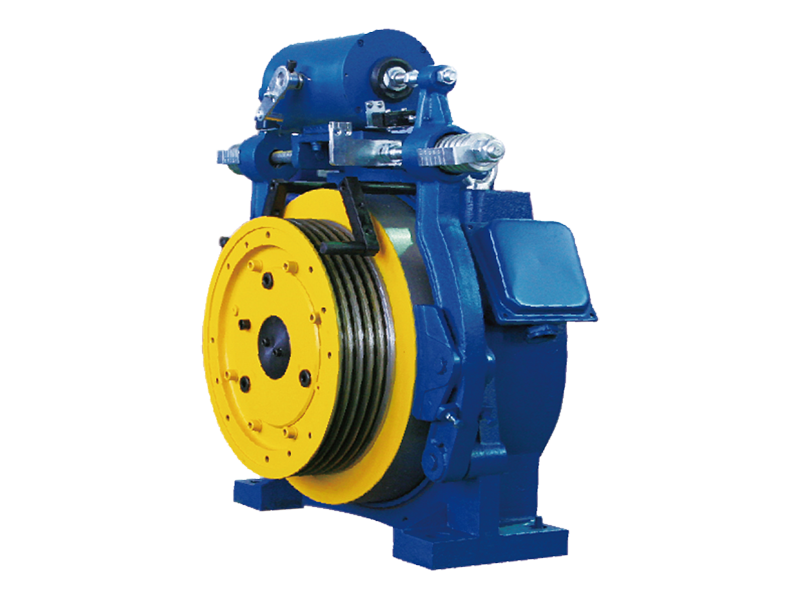

Product Details
Rated Voltage：AC 220V/AC 380V
Roping：2：1
Rated duty load：800 ~ 1000 kg
Rope warping method: Single
Car Speed：30 ~105 m/min
Protection Class：IP41 Standard
Insulation Class (INS. Class)：F class
Traction machine poles：20
Start frequency(times / hour)：240
Rating：S5-40%
| Model | Capacity (kg) | Speed (m/min) | Speed of elevator (m/min) | Sheave (mm) | Num | ROPE DIA. (mm) | Pitch (mm) | Voltage (V) | Current (A) | Rated speed (rpm) | Rated Frequency (Hz) | Power (kw) | Rated torque (Nm) | Shaft Load (kg) | Machine weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM12BD-5500 | 800 | 60 | 30 | ψ400 | 5 | ψ10 | 16 | 220 / 380 | 12.3 / 6.8 | 48 | 8 | 2.8 | 550 | 5500 | ≈450 |
| 90 | 45 | 21.2 / 12.5 | 72 | 12 | 4.1 | ||||||||||
| 120 | 60 | 21.2 / 12.5 | 96 | 16 | 5.5 | ||||||||||
| 180 | 90 | 31.8 / 18.2 | 144 | 24 | 8.3 | ||||||||||
| 192 | 96 | 35.2 / 19.8 | 153 | 26 | 8.8 | ||||||||||
| 210 | 105 | 37.2 / 20.6 | 168 | 28 | 9.7 | ||||||||||
| 1000 | 60 | 30 | ψ400 | 5 | ψ10 | 16 | 220 / 380 | 15.4 / 7.8 | 48 | 8 | 3.4 | 665 | |||
| 90 | 45 | 26 / 14.9 | 72 | 12 | 5 | ||||||||||
| 120 | 60 | 26 / 14.9 | 96 | 16 | 6.7 | ||||||||||
| 180 | 90 | 42.8 / 22.2 | 144 | 24 | 10 | ||||||||||
| 192 | 96 | 44.3 / 24.3 | 153 | 26 | 10.7 | ||||||||||
| 210 | 105 | 49 / 28.2 | 168 | 28 | 11.7 |
