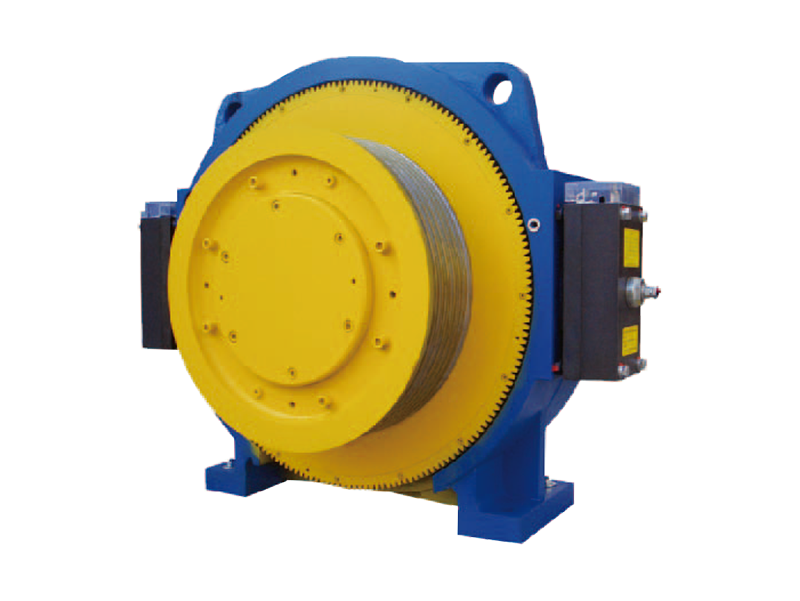

Product Details
Rated Voltage：AC 220V/AC 380V
Roping：2：1
Rated duty load：1350 ~ 2000 kg
Rope warping method：Single
Car Speed：60 ~105 m/min
Protection Class：IP41 Standard
Insulation Class (INS. Class)：F class
Traction machine poles：20
Start frequency(times / hour)：240
Rating：S5-40%
| Model | Capacity (kg) | Speed (m/min) | Speed of elevator (m/min) | Sheave (mm) | Num | ROPE DIA. (mm) | Pitch (mm) | Voltage (V) | Current (A) | Rated speed (rpm) | Rated Frequency (Hz) | Power (kw) | Rated torque (Nm) | Shaft Load (kg) | Machine weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM12BU-7000 | 1350 | 120 | 60 | ψ480 | 7 | ψ12 | 18 | 220 / 380 | 35 / 19.5 | 80 | 19.9 | 8.8 | 1055 | 7000 | ≈800 |
| 210 | 105 | 58.8 / 33.7 | 139 | 34.8 | 15.4 | ||||||||||
| 240 | 120 | 67 / 39.3 | 159 | 39.8 | 17.6 | ||||||||||
| 300 | 150 | 84 / 47.2 | 199 | 49.7 | 22 | ||||||||||
| 1600 | 120 | 60 | ψ480 | 7 | ψ12 | 18 | 220 / 380 | 40.4 / 22.9 | 80 | 19.9 | 10.4 | 1250 | |||
| 210 | 105 | 68.8 / 40.5 | 139 | 34.8 | 18.2 | ||||||||||
| 240 | 120 | 78.4 / 46 | 159 | 39.8 | 20.8 | ||||||||||
| 300 | 150 | 98 / 57.5 | 199 | 49.7 | 26 | ||||||||||
| 2000 | 120 | 60 | ψ480 | 7 | ψ12 | 18 | 220 / 380 | 50.7 / 28.7 | 80 | 19.9 | 13.1 | 1570 | |||
| 210 | 105 | 86.4 / 50.8 | 139 | 34.8 | 22.9 | ||||||||||
| 240 | 120 | 98.5 / 57.6 | 159 | 39.8 | 26.2 | ||||||||||
| 300 | 150 | 123 / 71.9 | 199 | 49.7 | 32.7 |
