楔型鋼索頭

楔式ロープ止金具

モデル番号： T-G08380_T-G08380-S_T-G08530_T-G08530-S_T-G10480_T-G10480-S_T-G10550_T-G10550-S_T-G10650_T-G10650-S_T-G12600_T-G12600-S

詳細

製品詳細

特殊長度可訂製

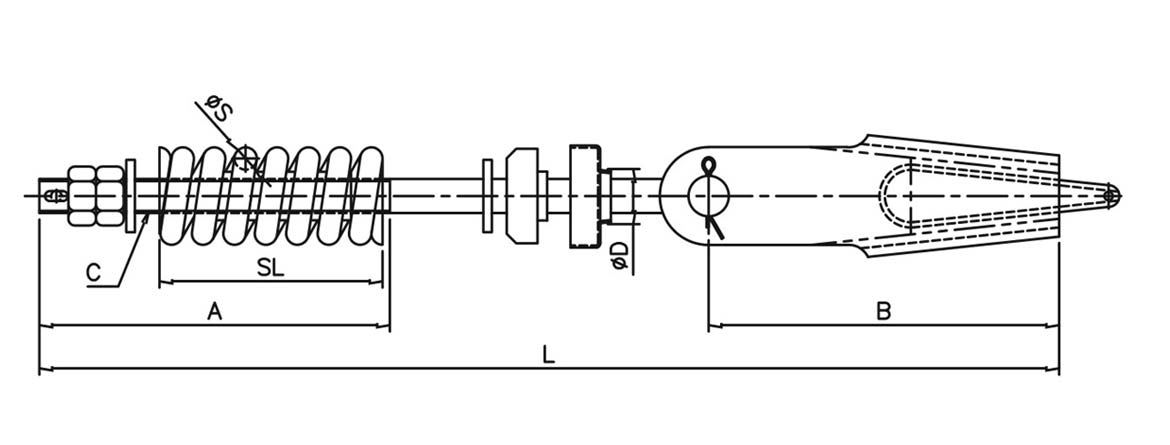

楔式ロープ止金具



型式
Type		 適用鋼索
Application of Wire rope		 尺寸
Dimension
(mm)		 彈簧規格
Dimension of Spring
L ψD A C ψS SL 　
T-G08380 ψ8 380 25 120 M12 不附(Without)
T-G08380-S 6 113 附(With)
T-G08530 ψ8 530 25 120 M12 不附(Without)
T-G08530-S 6 113 附(With)
T-G10480 ψ10 480 25 165 M16 不附(Without)
T-G10480-S 10 105 附(With)
T-G10550 ψ10 550 25 220 M16 不附(Without)
T-G10550-S 10 105 附(With)
T-G10650 ψ10 650 25 220 M16 不附(Without)
T-G10650-S 10 105 附(With)
T-G12600 ψ12 600 30.5 200 M20 不附(Without)
T-G12600-S 11 10 附(With)
