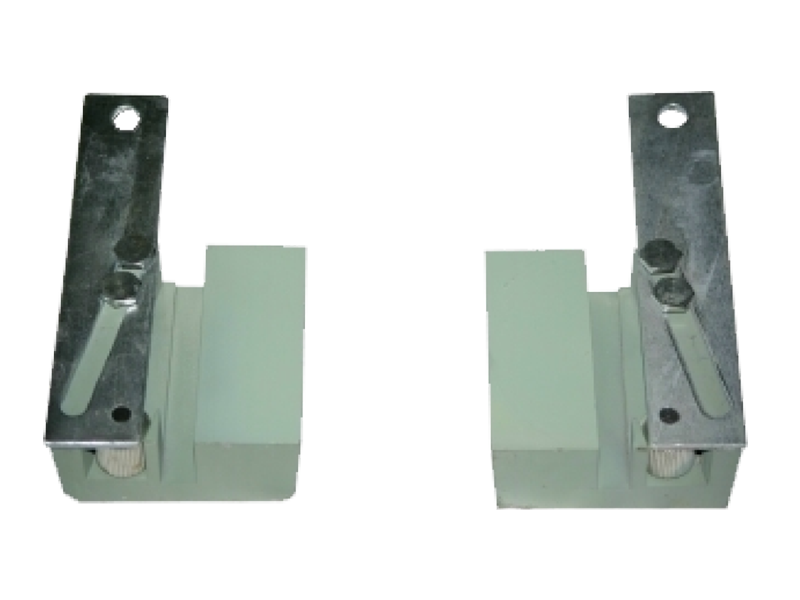

剎車塊

型號： S-08B-L_S-08B-R_S-13B-L_S-13B-R_S-24B-L_S-24B-R

型式 Type	適用鋼軌 Application of guide rail	尺寸 Dimension(mm)
型式 Type	適用鋼軌 Application of guide rail	L	W	H	A	B	L1	C	E
S-08B-L	8K	110	106	45	15	30	80	23	M12
S-08B-R	8K	110	106	45	15	30	80	23	M12
S-13B-L	13K	110	106	45	21	30	80	23	M12
S-13B-R	13K	110	106	45	21	30	80	23	M12
S-24B-L	24K	110	128	55	21	36	80	28	M16
S-24B-R	24K	110	128	55	21	36	80	28	M16
